Camlock Coupling (Bend-Reducer Series)
In this series a versatile range of Camlock Couplings designed with multiple end connection options including bends and reducers. Custom end connections are available to suit specific application requirements. All couplings feature a standardized assembly design, ensuring full interchangeability in accordance with EN, DIN, and MIL standards for seamless global compatibility. (Made to Order)
- Application
- Specification
- Key Feature
- Temperature Chart
- How To Order

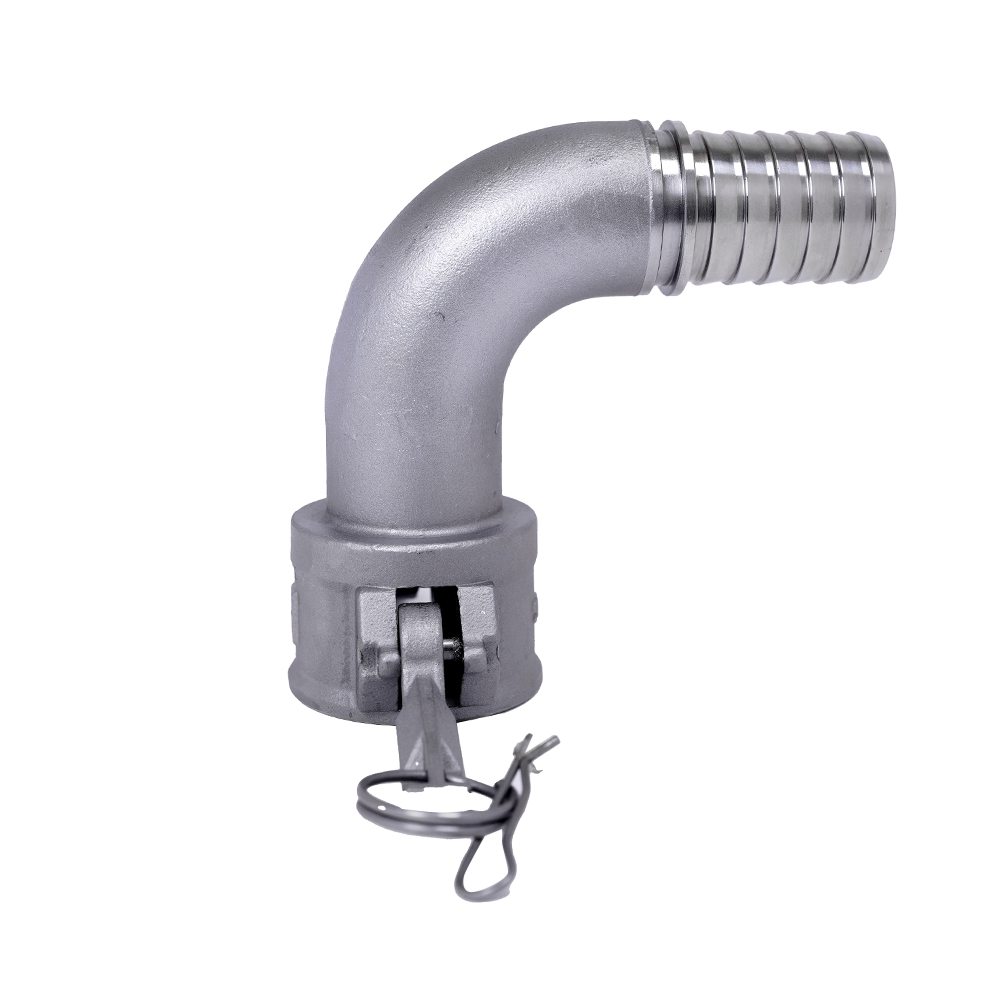

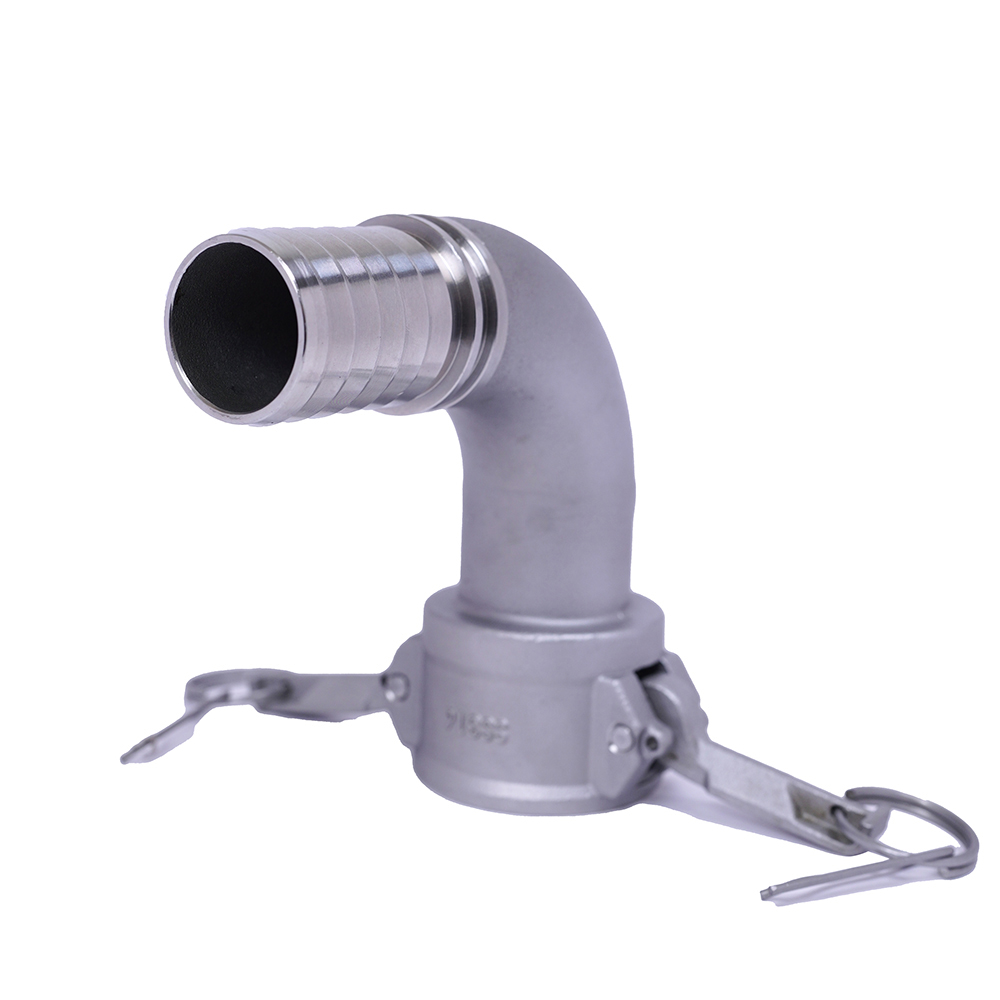

The 'Bend (elbow-type) Camlock Couplings' are used in applications where a change in flow direction is required within limited or complex piping layouts, by enabling smooth directional flow without excessive hose bending, they reduce stress on connections. The 'Reducer Camlock Couplings' are used in applications where a transition between different pipe or hose sizes is required while maintaining a quick-connect system, by enabling smooth size reduction or expansion within the lines. These are ideal for fluid and material transfer in industries such as chemical processing, oil & gas, agriculture, and tank loading/unloading systems.
- Material of construction: stainless steel 316 & 304
- Size: 1/4", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 12"
- Type: 8 (eight) types A , B, C, D, E, F, DC and DP
- End connections: Hose shank, BSP, BSPP, BSPT, NPT, Metric threads etc.. (we can also make any special threads)
- Pressure Resistance: Up to 50 bar
- Seal Material Options: PTFE ENVELOP SEALS, NITRILE, SILICON, FFKM, VITON, NBR & CR (Made to Order)
1. Space-Constrained Installations, used where straight connections are not possible due to limited space. Common in skid systems, machinery connections, and compact plant layouts.
2. The bends redirect flow without stressing hoses. Helps in smooth product transfer (fuel, chemicals, etc.).
3. Ideal for routing pipelines around equipment or structures. Prevents sharp hose bending and reduces wear in corrosive or hazardous fluid transfer.
4. It is very useful in systems handling dry materials where flow direction needs to be controlled without additional fittings.
5. It eliminates need for additional elbows or fittings and saves installation space.
6. Size Transition Capability, Enables connection between different pipe or hose sizes within the same system.
7. Global Interchangeability, as assembly is fully compatible with EN, DIN, and MIL standards for seamless integration across international systems.
8. Quick Connect / Disconnect, Cam & groove mechanism allows fast, tool-free operation, saving time and improving operational efficiency.
9. Reliable Sealing Performance, precision design ensures secure and leak-resistant connections during operation.
10. We manufacture made to order special types in all the 8 (eight) types of Camlock couplings A, B, C, D, E, F, DC & DP
| Seal Material | Min Temp (°C) | Max Temp (°C) | Min Temp (°F) | Max Temp (°F) | Key Properties |
| NBR (Buna-N) | -30°C | +100°C | -22°F | +212°F | Oil & fuel resistant, general purpose |
| EPDM | -40°C | +150°C | -40°F | +302°F | Excellent for water, steam, chemicals |
| PTFE (Teflon) | -200°C | +260°C | -328°F | +500°F | good chemical resistance, wide range |
| Viton (FKM) | -20°C | +200°C | -4°F | +392°F | High temp & chemical resistance |
1. Choose your type
2. Choose your size
3. Choose your material
4. Choose end connections (thread type)
5. Choose your seals
6. Discuss with our sales team about your degree of bend or reduction size
